Accessories
1)A recording paper
2)Two fuses
3)A power cord
4)A halogen lamp
5)A pipette
6)A pump pipe
Physical characteristic
1)Dimension: 410mm(L)×340mm(W)×150(H)mm (host)
2)Weight: 6 Kg
3)Working environment
4)Temperature: 10ºC~30ºC
5)Relative humidity: ≤80%
6)Atmospheric pressure: 860hPa~1060hPa
7)Transportation and storage:
8)Temperature: -40ºC~55ºC
9)Relative humidity: ≤95%
10)Atmospheric pressure: 860hPa~1060hPa
11) Carton Size:50.6*43.3*25.5(cm),gross weight:8.2 kg

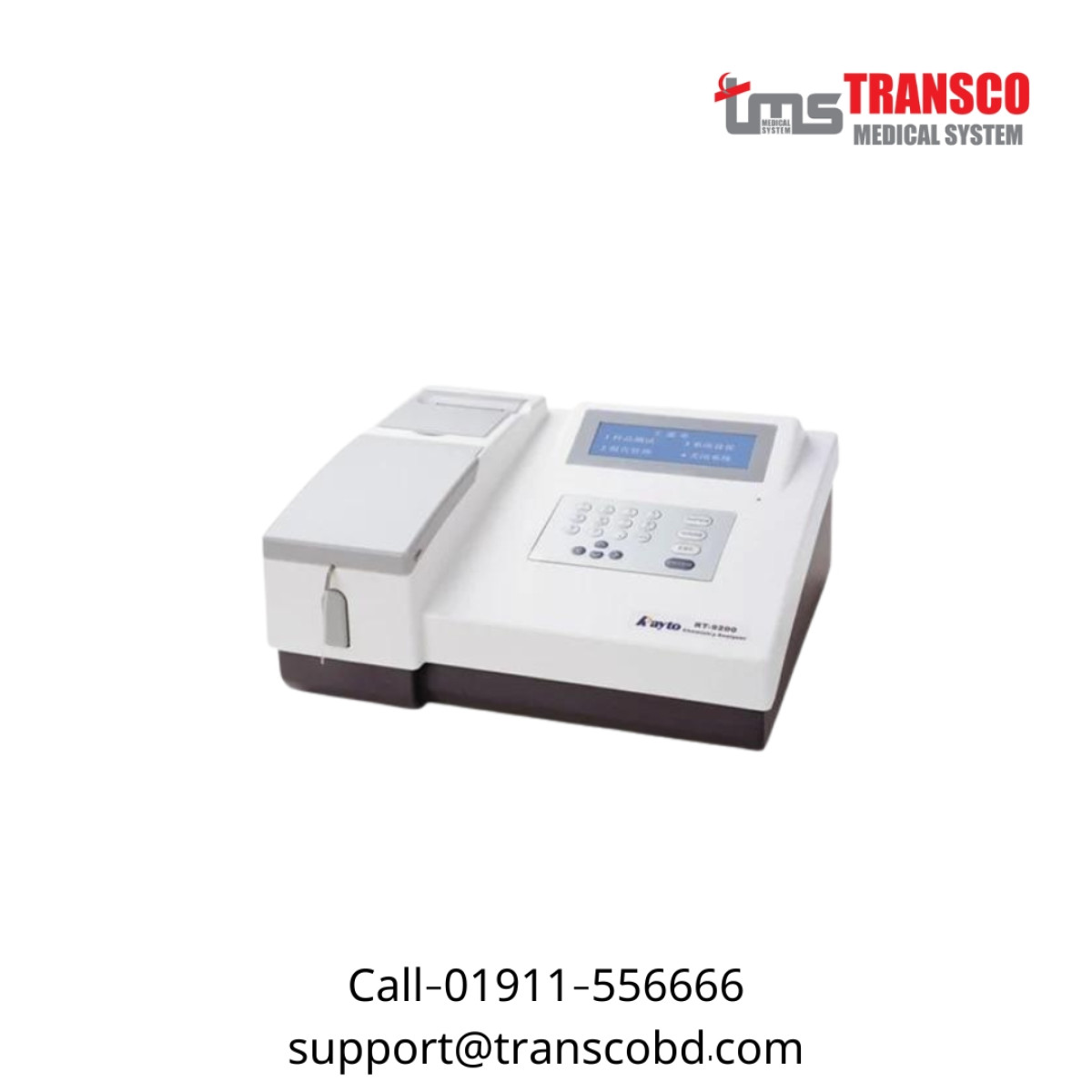

Rayto RT9200 Semi-Auto Clinical Biochemistry Analyzer
The Semi-auto Biochemistry Analyzer Rayto RT9200 measures biochemical indexes by analyzing blood and other body fluid, then combines it with other clinical information, to help diagnose disease, evaluate organs function, identify the disease genes and determine the norm for future therapy.
Absorbency range -0.3-3.0Abs Resolution 0.001Abs(display), 0.0001 Abs(internal calculation) Light source Halogen lamp Wavelength 340, 405, 510, 546, 578, 620nm + 2 free positions Stability ≤0.005A/30min Half-bandwidth ≤12 nm Temperature control room temperature, 25ºC, 30ºC, 37ºC Temperature accuracy ±0.1ºC Colorimetric cell 30μl quartz flow cell Sample volume 0~6000μl Cross-contamination ≤1.0% Storage 500 test items, 10000 test results Interface standard RS232 interface, 4 USB interfaces, Ethernet interface Display 7″color LCD(800*480) Print built-in thermal printer or connect an external printer Processor embedded high-speed processor Power supply 100VAC~240VAC, 50/60Hz
